Description

What’s Behind the Beauty is Genius

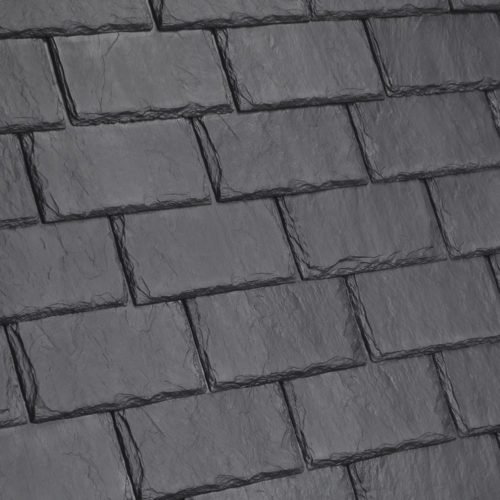

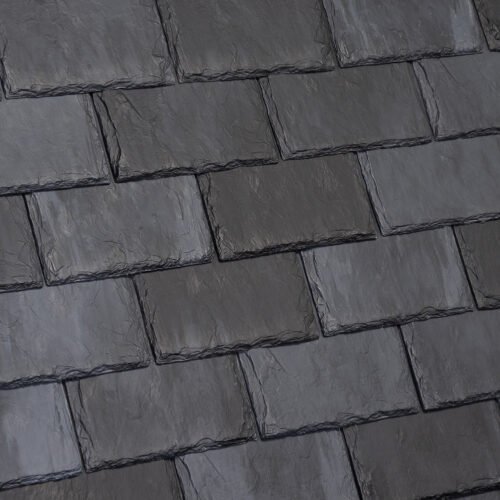

DaVinci Single-Width Slate roofing tiles are constructed of a composite material made of pure virgin resins, UV and thermal stabilizers as well as a highly-specialized fire retardant. The result is a premium roofing tile that gives us the greatest degree of color control and consistency in the manufacturing process. And you end up with a product that endures beautifully in any climate. Natural slate tiles can’t compete.

12″ tile width
1/2″ tile thickness
Can be installed at 6”, 7”, 7-1/2”, and 8” exposure
Modeled from actual slate for natural, non-repeating beauty
Resistant to fading, rotting, cracking, and pests
Lifetime Limited Material Warranty
Tiles arrive at the job site bundled and pre-sorted for color, eliminating sorting and guesswork at the site

A Virtually Limitless Color Palette

Color Wheel

DaVinci composite slate roofing tiles are available in a full spectrum of authentic slate colors. Each slate blend is formulated from different slate tones creating a natural variance in color, enhancing the realistic appearance and blending beautifully with its surroundings. Nobody offers you more color options than DaVinci—your only limitation is your imagination. Whether you’re selecting a single color or creating a custom blend or color, we’ve got you covered in a way real slate can’t. See your color options come to life by using our color visualizer.

Cool Roof

Cool Roof colors for our Single-Width Slate roofing tiles are available in Brownstone, Castle Gray, and Slate Gray. These premium blends were designed to reflect sunlight and heat away from your home. Cool Roof colors meet the Title 24 requirements for California residents. Learn more about ratings and compliance.

Look for the Cool Roof symbol for options that can increase energy efficiency in your home.

We’re ready to help

Contact our Project Specialist to learn more about DaVinci products and color options.

* Colors are as accurate as technology allows. Please make final selection from actual shingles

Visualize Your Project

Technical Specifications

DaVinci products meet or exceed building industry standards. If you have questions or require further information, please visit the document center or contact our sales associates for any additional help.

SHINGLE DIMENSIONS

widths	12″	thickness at butt	1/2″
length	18″	thickness at tip	1/8″

HIP-RIDGE-STARTER

	6″ HIP & RIDGE (FOR RIDGE VENTS ONLY)	7″ Hip & Ridge (standard)	One-Piece Hip & Ridge	12″ Starter
pieces / bundle	20	20	10	20
linear ft / bundle	5*	5*	10	20
pieces / linear ft	4*	4*	1	1
nails required	40/BDL	40/BDL	20/BDL	40/BDL
* At recommended 6″ exposure Note: 9″ pieces available for ridge; 4″ pieces available for turrets.

FIELD SHINGLES PER ROOFING SQUARE

Coursing	Roof Pitch	Max. Exposure	Bundles / Square	Shingles / Square	Weight / Square
Straight	6:12 or greater	8.0″	6.6	146	275 lbs
Straight	6:12 or greater	7.5″	7.1	156	294 lbs
Staggered	6:12 or greater	7.0″	7.6	167	315 lbs
Straight or Staggered	4:12 to 6:12	6.0″	8.8	194	367 lbs
Straight	3:12 to 4:12	6.0″	8.8	194	367 lbs
Note 1: All calculations are based on using the recommended 3/8″ gap between shingles. Note 2: Straight coursing may be used at any exposure up to 8.0″ and staggered coursing may be used at any exposure up to 7.0″

Testing & Building Code Approvals

Fire: ASTM E 108, Class A (Fire Classification Requirements)
Impact: UL 2218, Class 4
Wind: ASTM D 3161, Certified to 110mph
High Velocity Hurricane Zone: TAS 125, up to 180mph
ICC-ES ESR-2119
Miami-Dade County, FL NOA
CA Title 24
Texas Dept. of Insurance
CCMC 14094-R
WUI 4175
LEED Contribution

Designed with Contractors in Mind

DaVinci products and roofing systems are designed with contractors in mind. DaVinci single-width composite slate roofing tiles are typically delivered to the job site in pre-sorted bundles (by size and color) for ease in handling and installation. DaVinci roofing materials can be installed at temperatures below 45° Fahrenheit (7° Celsius) and are backed by a Lifetime Limited Material Warranty.

Installation Guides

Single-Width Slate Installation Videos

DaVinci synthetic slate roofing is just as easy to install as natural slate or asphalt shingles. Below are our easy-to-follow installation videos for common installation practice tips.
