Owens Corning – VentSure® Rigid Roll Ridge Vent

Owens Corning – VentSure® Rigid Roll Ridge Vent

Get advanced roof protection from eave to ridge.

Optimize Airflow in your Attic

Request a Quote

Description

Optimize Airflow in your Attic

Reduce heat and moisture buildup that can lead to ice damming, roof deterioration and mold infestation. Helps air flow through the attic to manage temperature and moisture.

For an efficient roofing system, it’s essential that the attic stay dry and cool. VentSure® Rigid Roll Ridge Vents with Weather PROtector® moisture barrier membrane protects against weather infiltration. Featuring a low profile, Rigid Roll uses a shingle-over construction for durability and protection.

  • Patented, durable corrugated plastic construction
  • Unique design adjusts to almost any roof pitch

When properly installed with soffit or eave vents, VentSure® Rigid Roll Ridge Vents meet or exceed requirements of all recognized national building codes. And they have passed all research and development tests** for weather infiltration:

  • Wind-driven rain – 8.8″ of rain at 110 MPH**
  • Snow infiltration – snow simulation at 35 and 70 MPH**

As a key component of a VentSure® Balanced Air Ventilation System, the VentSure® Rigid Roll Ridge Vent is an essential part of the Total Protection Roofing System®^.

Download Brochure

Specifications & Literature

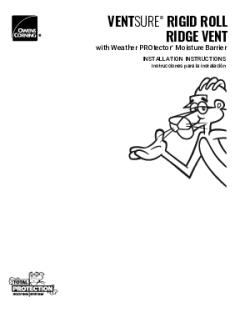

VentSure® Rigid Roll Ridge Vent Installation Instructions

Installation InstructionsVentSure® Rigid Roll Ridge Vent Installation Instructions

You can find the VentSure® Rigid Roll Ridge Vent installation instructions in an easy to download format on this page.

 | 1.9 MB

 VentSure® Ventilation Products Limited Warranty

Technical Information

11.25″

9″

7″ (Compton and Portland Service Area)

Net Free Vent Area

250 sq. in. per roll / 12.5 sq. in. per lin. ft.

250 sq. in. per roll / 12.5 sq. in. per lin. ft.

250 sq. in. per roll / 12.5 sq. in. per lin. ft.

Nominal Length

240″ / 20 ft.

240″ / 20 ft.

240″ / 20 ft.

Nominal Width

11.25″

9″

7″

Nominal Height

5/8″

5/8″

5/8″

Shingle-Over Width

12″

10″

8″

Allowable Roof Pitch

2:12 to 20:12

2:12 to 20:12

2:12 to 20:12
** Testing performed at Architectural Testing Incorporated (ATI) in York, PA.
^ Excludes non–Owens Corning® roofing products such as flashing, fasteners and wood decking.
LEED® is a registered trademark of U.S. Green Building Council.

Ventilation Requirements

In order to create a consistent flow of cool, dry air through your attic, you need to make sure the air has a way to come in and go out: intake and exhaust. It’s important there is a balance between the intake and exhaust ventilation to help ensure air flows smoothly and efficiently.

Vent Calculator

Applicable codes and standards

  • ICC-ES AC132
  • ICC-ESR 2664
  • PRI ER 1378E03
  • Florida Product Approval
  • Miami-Dade Product Approval
  • FBC – TAS100(A) Wind-Driven Rain up to 110 MPH
  • TDI Approved For Use in Windstorm Catastrophe Areas

 VentSure® Rigid Roll Ridge Vent Installation Instructions
